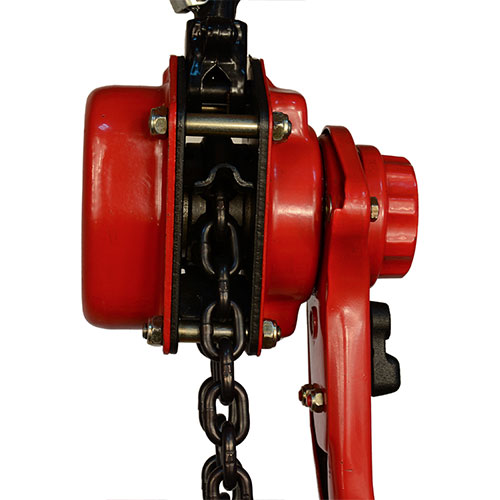

NP Lever Hoist
- Brand name: Navigate
- Packing: Carton & pallet, or as customers' requirements
- ETD: within 20~30 days for one FCL after order confirmation
- Certification: CE, GS
- Warranty: 12 months
- Each body has a trace code for production traceability
- Special specifications and marks can be made according to customers' requirements
Product Features:
• The adoption of low-alloy structural steel plate, safe, reliable and durable
• G80 High Strength load chain, high safety factor and long service life.
• Steady rotation, high efficiency, small lever force.
• CE&GS
• Double pawls breaking system keep safe and reliable.
• The products have been widely used in nuclear power, thermal power transmission etc.
• Optional overload protection
Standard Setting:
• T(80) Load Chain
• Black Tempered Load Chain
• Stamping Safety Latch
Optional Setting:
• Overload protection(OLP)
• Zinc Plated Load Chain
• V(100) Load Chain
• Zinc Plated Cast End Anchor
• Thrust Bearing on Bottom Hook
• Thicken Stamping Safety Latch
• High Precision Caged Roller Bearing
• Optional Handwheel with cover
Specification:
0.75 - 3T
6T
9T
Model | Capacity (T) | Standard Lift (M) | Running test(T) | Effort required tolift max load (N) | No.of falls of load chain | Load chain diameter(mm) | Dimension | Net wight (KG) | |||||
A | B | C | D | L | H | ||||||||
NP-0.5T | 0.5 | 1.5 | 0.75 | 140 | 1 | 5 | 102 | 80 | 95 | – | – | – | 3.5 |
NP-0.75T | 0.75 | 1.5 | 1.125 | 140 | 1 | 6 | 148 | 88 | 135 | 32 | 290 | 320 | 7 |
NP-1T | 1 | 1.5 | 1.5 | 140 | 1 | 6 | 148 | 88 | 135 | 32 | 290 | 320 | 7.5 |
NP-1.5T | 1.5 | 1.5 | 2.25 | 240 | 1 | 8 | 176 | 102 | 155 | 36 | 415 | 380 | 11 |
NP-2T | 2 | 1.5 | 3 | 240 | 1 | 8 | 176 | 102 | 155 | 36 | 415 | 380 | 11.5 |
NP-3T | 3 | 1.5 | 4.5 | 320 | 1 | 10 | 195 | 109 | 211 | 46 | 415 | 480 | 19 |
NP-6T | 5 | 1.5 | 9 | 340 | 2 | 10 | 195 | 109 | 254 | 46 | 415 | 600 | 32 |
NP-9T | 10 | 1.5 | 13.5 | 360 | 3 | 10 | 195 | 109 | 319 | 57 | 415 | 700 | 47 |
